CONTROL BOX (mP3000-A)

CONTROL BOX (mP3000-A)

$7,798.51
$6,628.73

Description :
A-0024
Add to quote
A-0024

Product Details

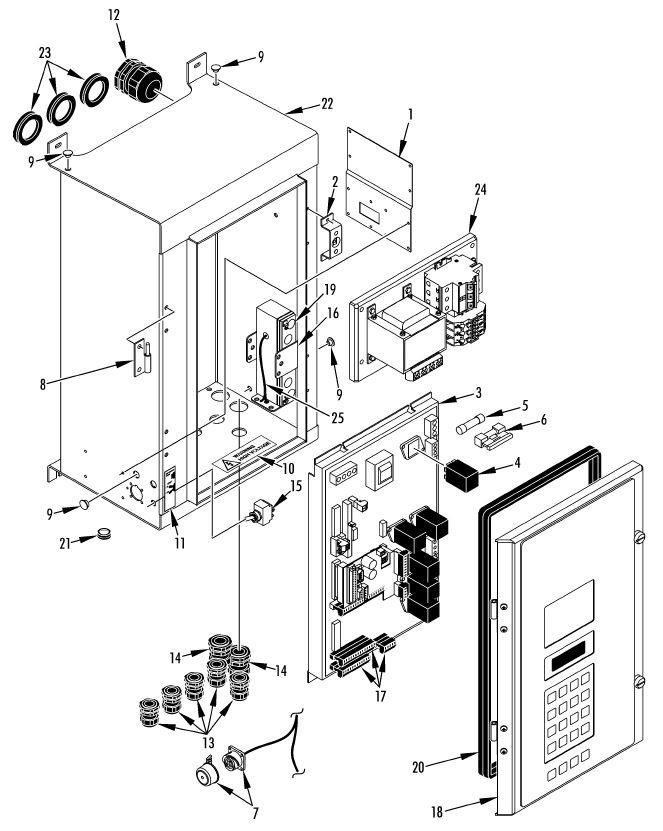

REF PART NO. DESCRIPTION QTY
1 92-236 BRACKET – diagram 1
1 55-3272 RIVET – bracket 4
2 92-237 BRACKET (w/ receptacle) 2
2 55-2074 NUT – speed 4
2 55-9166 SCREW – bracket 4
2 55-9444 WASHER – insulating (nylon) 4
3 45-2010 BOARD – relay (MP3000 A) 1
3 845-2010 BOARD – relay (reman, MP3000 A) 1
4 40-1367 Kit Relay MP 3000 6
4 93-5343 *CLIP – relay 6
5 41-9318 *FUSE (20A) 3
6 41-9318 *HOLDER – fuse 3
6 51-336 SCREW – relay board 6
7 41-3402 CABLE – retriever plug (Deutsch, see 157H2) 1
7 55-3272 RIVET – plug 4
7 41-2406 CAP – plug 1
7 99-3685 CHAIN – cap 1
8 92-238 HINGE – cover 2
8 51-1418 SCREW – hinge 4
8 51-618 INSULATOR 2
8 51-1423 FLATWASHER 4
8 51-1424 LOCKWASHER 2
8 51-1419 NUT 4
9 55-9346 PLUG – seal 2
10 91-9833 NAMEPLATE – Caution 1
11 92-244 NAMEPLATE – On/Off 1
12 41-3686 CONNECTOR – liquid tite 1
13 55-5900 FITTING – harness 5
14 55-5257 FITTING – harness 2
15 41-3595 SWITCH – On/Off (unit & cond fan) 2
15 92-239 BOOT – switch 1
16 92-5520 BRACKET – battery 1
16 55-2988 RIVET – bracket 1
17 41-2832 CONNECTOR – plug (2-pin, short circuit) 1
17 41-3596 BLOCK – terminal (4 pole) 1
17 41-3597 BLOCK – terminal (5 pole) 1
17 41-3598 BLOCK – terminal (8 pole) 1
17 41-3851 BLOCK – terminal (12 pole) 1
17 41-3599 BLOCK – terminal (14 pole) 1
17 41-3608 BLOCK – terminal (18 pole) 1
18 NSS DOOR – controller (see 183B5 & 188E8) 1
19 203-509 BATTERY (12V, 1.9 AH) 1
19 55-9759 SCREW – battery 1
19 55-6995 FLATWASHER 2
19 55-7042 NUT 1
20 33-3837 GASKET – cover 1
21 33-3838 GROMMET 1
22 98-5454 BOX – control 1
22 55-6994 SCREW – control box 4
22 55-8893 FLATWASHER 4
22 55-9054 WASHER – insulator 3
23 33-3215 GROMMET 3
24 NSS TRAY – high voltage (see 158A1) 1
25 41-3335 CABLE – battery 1
25 41-4527 *CONNECTOR (7-pin) 1
25 44-6381 *CONNECTOR (2-pin) 2
