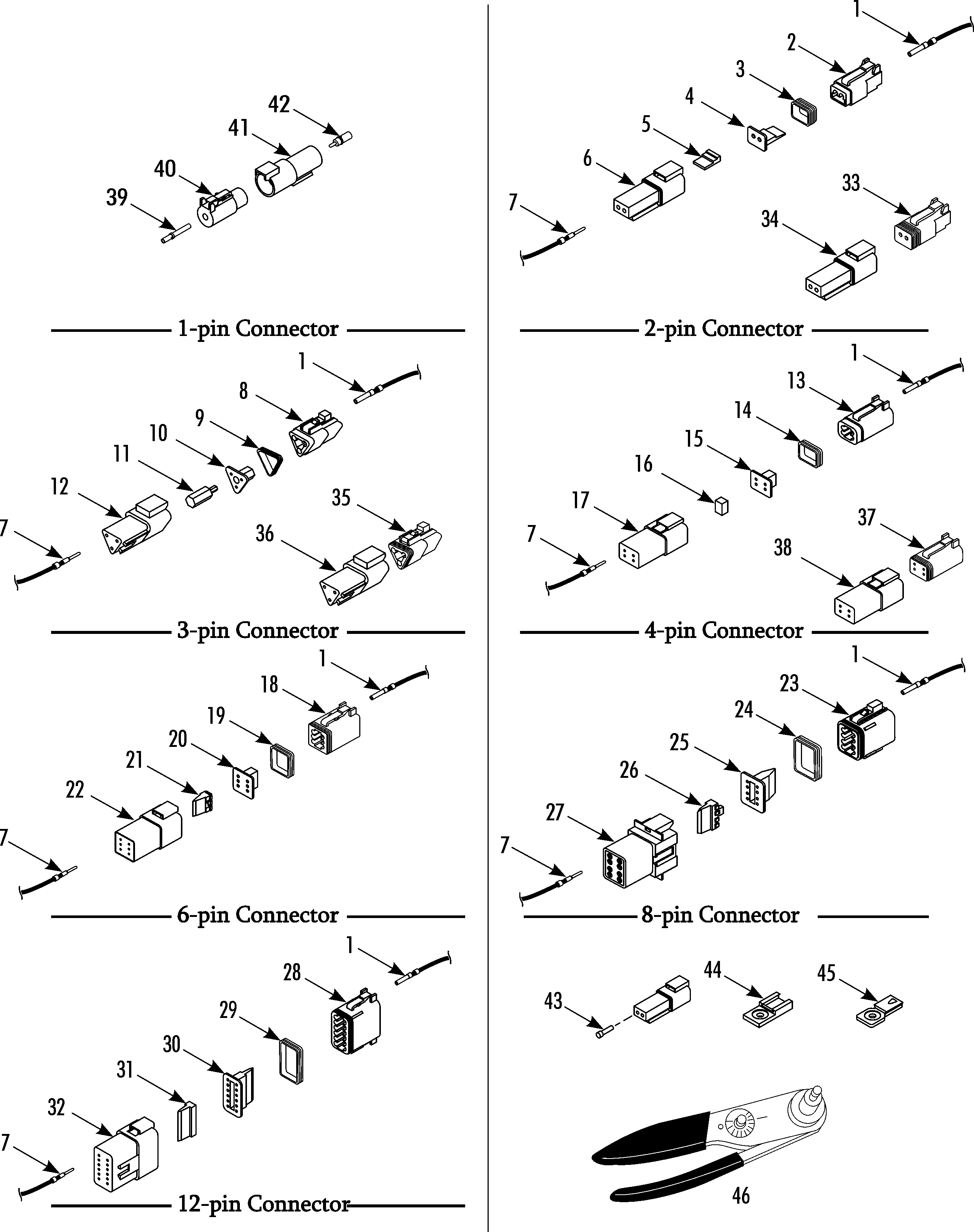

| REF | PART NO. | DESCRIPTION | QTY |
| 1 | 449700 | TERMINAL – socket (w/ 6-in wire lead) | 2 |
| 1 | 449587 | TERMINAL – socket (without wire) | 2 |
| 2 | 449585 | PLUG (2-pin, w/ seal) | 1 |
| 3 | 332392 | SEAL | 1 |
| 4 | 449586 | WEDGE | 1 |
| 5 | 449590 | WEDGE | 1 |
| 6 | 449589 | RECEPTACLE (2-pin) | 1 |
| 7 | 449701 | TERMINAL – pin (w/ 6-in wire lead) | 2 |
| 7 | 449591 | PIN – terminal (w/o wire) | 2 |
| 8 | 449631 | CONNECTOR (3-pin, w/ seal) | 1 |
| 9 | 332393 | SEAL | 1 |
| 10 | 449536 | WEDGE | 1 |
| 11 | 449545 | WEDGE | 1 |
| 12 | 449544 | RECEPTACLE (3-pin) | 1 |
| 13 | 448935 | PLUG (4-pin, w/ seal) | 1 |
| 14 | 332394 | SEAL | 1 |
| 15 | 448936 | WEDGE | 1 |
| 16 | 448918 | WEDGE | 1 |
| 17 | 448915 | RECEPTACLE (4-pin) | 1 |
| 18 | 448920 | CONNECTOR (6-pin, w/ seal) | 1 |
| 19 | 332395 | SEAL | 1 |
| 20 | 448921 | WEDGE | 1 |
| 21 | 448917 | WEDGE | 1 |
| 22 | 448914 | CONNECTOR (6-pin) | 1 |
| 23 | 449903 | PLUG (8-pin, w/ seal) | 1 |
| 24 | 332396 | SEAL | 1 |
| 25 | 449902 | WEDGE | 1 |
| 26 | 449901 | WEDGE | 1 |
| 27 | 449900 | RECEPTACLE (8-pin) | 1 |
| 28 | 449600 | PLUG (12-pin, w/ seal) | 1 |
| 29 | 332397 | SEAL | 1 |
| 30 | 449601 | WEDGE | 1 |
| 31 | 449905 | WEDGE | 1 |
| 32 | 449904 | RECEPTACLE (12-pin) | 1 |
| 33 | 412323 | PLUG – assembly (w/ 6-in wires) | 1 |
| 34 | 412322 | RECEPTACLE – assembly (w/ 6-in wires) | 1 |
| 35 | 412325 | PLUG – assembly (w/ 6-in wires) | 1 |
| 36 | 412324 | RECEPTACLE – assembly (w/ 6-in wires) | 1 |
| 37 | 412327 | PLUG – assembly (w/ 6-in wires) | 1 |
| 38 | 412326 | RECEPTACLE – assembly (w/ 6-in wires) | 1 |
| 39 | 414524 | SOCKET (8-10 ga) | 1 |
| 40 | 413073 | PLUG (1 terminal) | 1 |
| 41 | 413069 | RECEPTACLE (1 terminal) | 1 |
| 42 | 446850 | PIN (8-10 ga) | 1 |
| 43 | 449602 | PIN – sealing | A/R |
| 44 | 449906 | TAB – mounting (for all connectors except the 8-pin connector) | A/R |
| 45 | 449907 | TAB – mounting (for 8-pin connector only) | A/R |
| 46 | 2040703 | KIT – crimper (w/ terminals) | 1 |
| 46 | 2041038 | * TOOL – crimper | 1 |
| 46 | 2040799 | * TOOL – wedge remover | 1 |
208C5
223G6
988002
223G8
