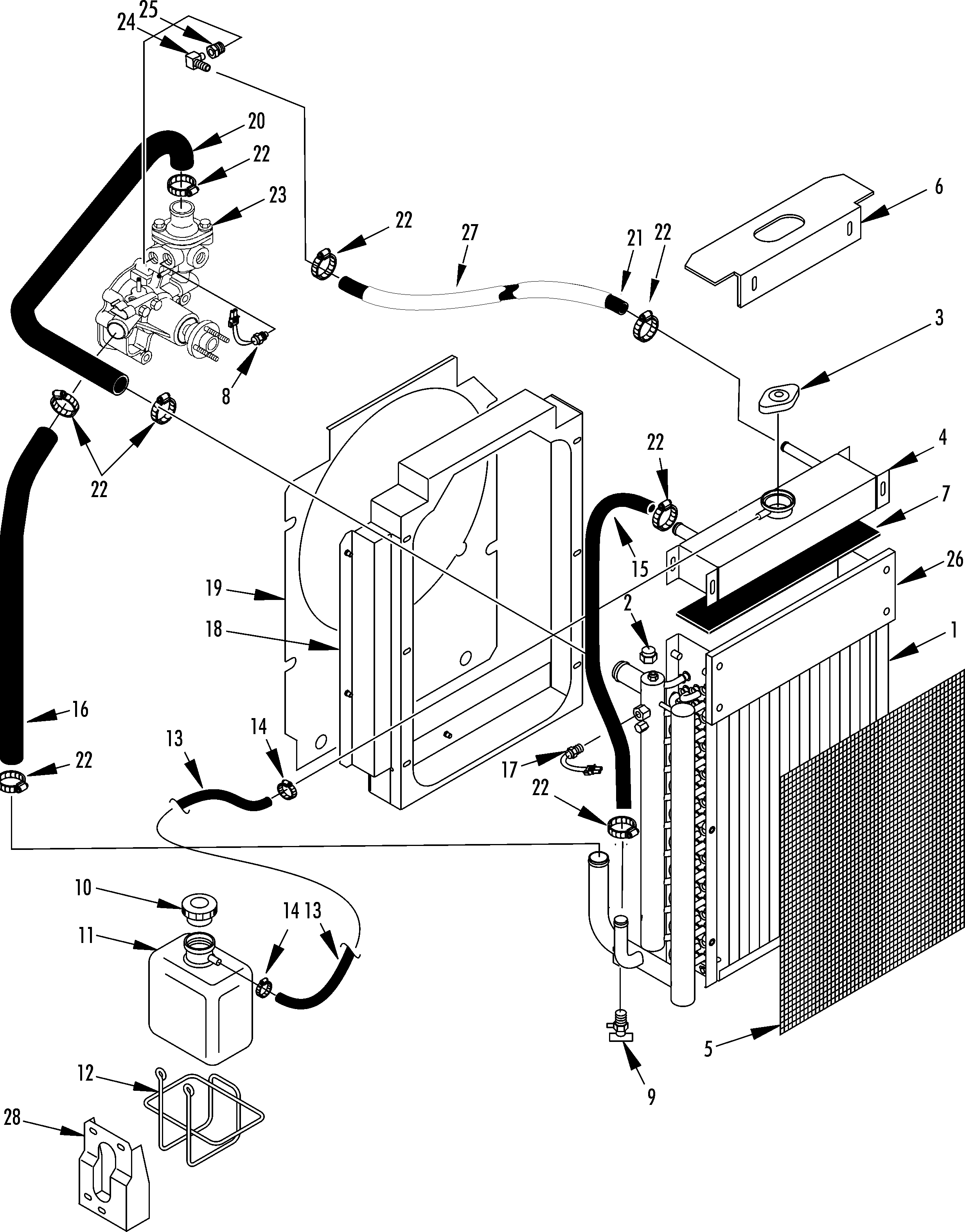

ENGINE COOLING SYSTEM

$7,918.99

Description :

A-0159

ref

part-no

A-0159

REF	PART NO.	DESCRIPTION	QTY
1	120799	RADIATOR	1
2	551983	* CAP – vent	1
3	118913	CAP – radiator	1
4	118888	TANK – expansion	1
4	553021	SCREW – tank	4
4	551800TKA	LOCKWASHER	4
4	552086	FLATWASHER	4
5	926417	SCREEN – radiator	1
6	925258	BRACKET – overflow tank	1
7	917782	PAD – radiator (top)	1
8	416539	SENSOR – water temperature	1
9	559011	COCK – drain (radiator)	1
10	998301	CAP & CHAIN – overflow tank (see 119E11)	1
11	114607	TANK – overflow	1
12	114693	HANGER – overflow tank	1
12	551587	SCREW – hanger	2
12	552086	FLATWASHER	2
12	554953	NUT	2
13	980771	HOSE – overflow (25 ft)	A/R
14	552796	CLAMP – hose	2
15	118891	HOSE – outlet	1
16	119525	HOSE – engine to radiator	1
17	411818	SENSOR – water level	1
18	985711	SHROUD – radiator	1
19	985723	ORIFICE – radiator	1
19	552995	SCREW – orifice	6
19	554740	FLATWASHER	6
20	119524	HOSE – radiator to engine (top)	1
21	121095	HOSE – EPDM (3/8 x 25 ft)	A/R
22	555400	CLAMP – hose	8
23	132572	PUMP – water (ELC compatible, see 204F0)	1
24	558653	ELBOW	1
25	552539	BUSHING	1
25	2030400	SEALANT	1
26	926416	BRACKET – radiator (front)	1
27	130950TKA	SLEEVING – insulating	1
28	917217	BRACKET – overflow tank	1
28	552977	SCREW	4
28	552086	FLATWASHER	8
28	554953	LOCKNUT	4
