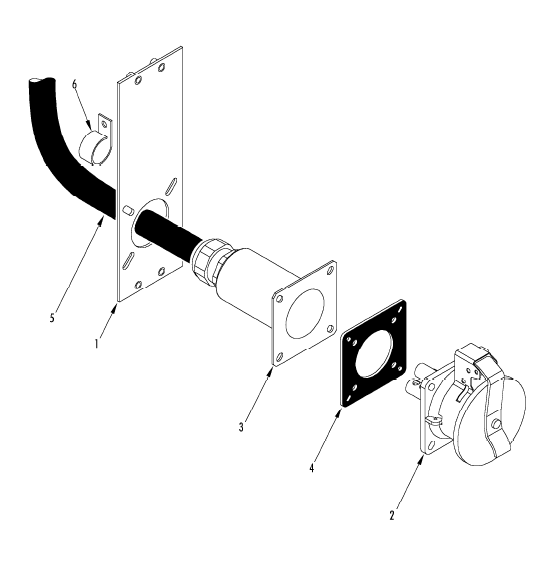

| REF | PART NO. | DESCRIPTION | QTY |
| 1 | 919917 | PLATE – receptacle | 1 |
| 1 | 552977 | SCREW – plate | 4 |
| 1 | 551800TKA | LOCKWASHER | 4 |
| 1 | 552086 | FLATWASHER | 4 |
| 2 | 413403 | RECEPTACLE (230V) | 1 |
| 2 | 413404 | RECEPTACLE (460V) | 1 |
| 3 | 417918 | COVER – receptacle (460V) | 1 |
| 3 | 413406 | COVER – receptacle (230V) | 1 |
| 3 | 552977 | SCREW – receptacle | 4 |
| 3 | 552086 | FLATWASHER | 8 |
| 3 | 554953 | NUT | 4 |
| 4 | 333168 | GASKET – receptacle (460V) | 1 |
| 4 | 333167 | GASKET – receptacle (230V) | 1 |
| 5 | 452136 | CABLE – power (230V, 10 ft) | 1 |
| 5 | 452135 | CABLE – power (460V, 10 ft) | 1 |
| 5 | 446310 | * TERMINAL – pin | 4 |
| 5 | 442792 | * TERMINAL – ring | 4 |
| 6 | 556016 | CLAMP (0.750 dia) | 2 |
| 6 | 552977 | SCREW – clamp | 2 |
| 6 | 551800TKA | LOCKWASHER | 2 |
| 6 | 552086 | FLATWASHER | 2 |
204F2
204F4
204F9
149C1
