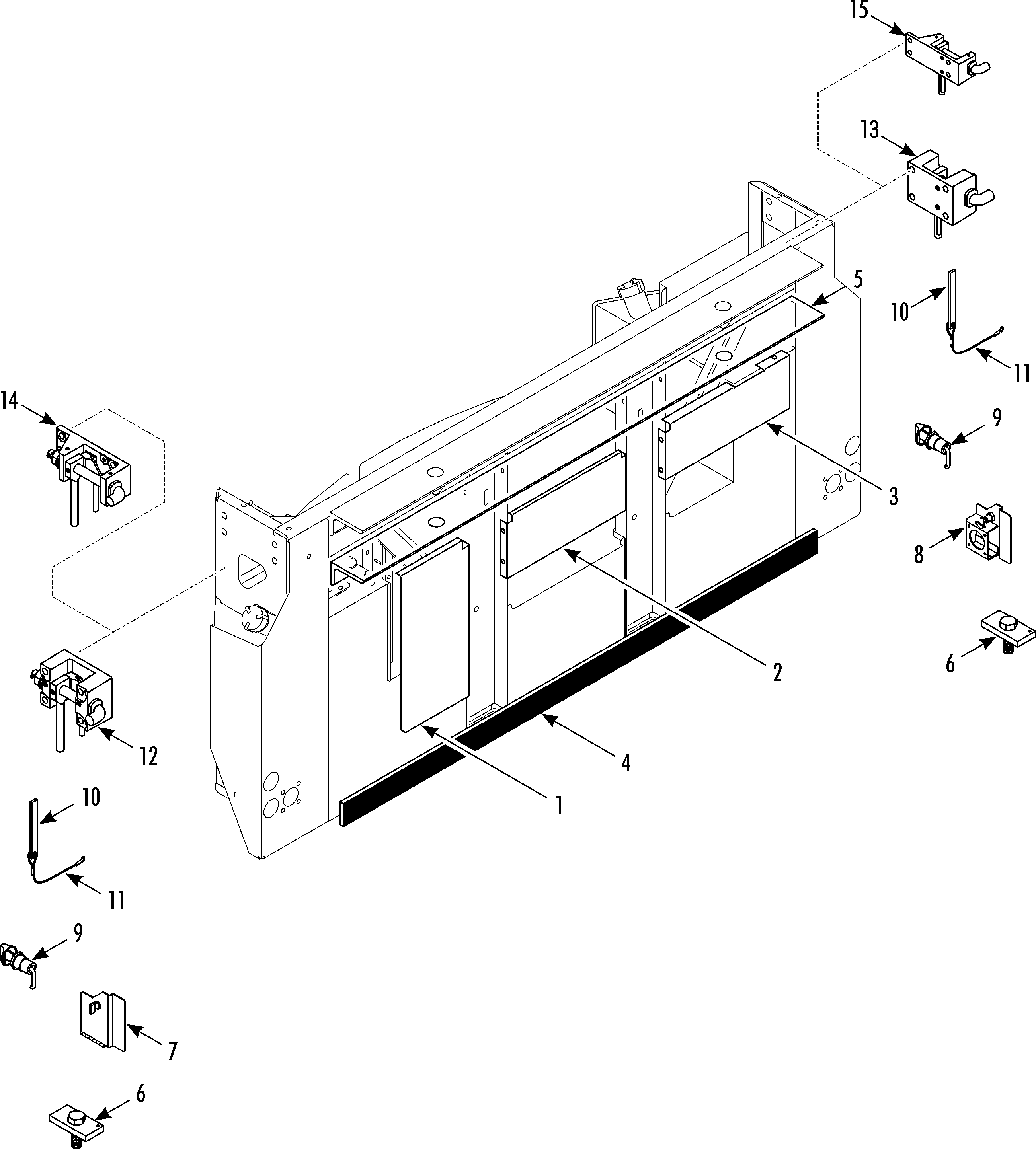

STRUCTURAL COMPONENTS (REAR VIEW)

$6,919.40

Description :
A-0173
Description :

158C5 STRUCTURAL COMPONENTS (REAR VIEW)

$6,919.40
A-0173

Product Details

REF PART NO. DESCRIPTION QTY
1 926717 SHIELD – radiator fan 1
1 926428 SHIELD – radiator fan (Maersk blue) 1
1 558979 * INSERT 2
2 926716 SHIELD – muffler 1
2 987227 SHIELD – muffler (Maersk blue) 1
2 558979 * INSERT 4
3 926718 SHIELD – exhaust tube 1
3 926420 SHIELD – exhaust tube (Maersk blue) 1
3 558979 * INSERT 3
3 551587 SCREW – shield 9
3 551800TKA LOCKWASHER 9
4 916831 STRIP – foam 1
4 900305TKA KIT – pin mount option 1
5 119500 * ANGLE – unit mount 1
6 119291 * SCREW – unit mount 2
7 920266TKA COVER – retainer bolt (rs, white, incl latch #16) 1
7 925269 COVER – retainer bolt (rs, Maersk blue, incl latch #16) 1
8 920267TKA COVER – retainer bolt (curbside, white, incl latch #16) 1
8 925270 COVER – retainer bolt (curbside, Maersk blue, incl latch #16) 1
9 996599 LATCH – door 1
10 917229 BAR – locking 2
11 917231 LANYARD 2
11 552964 LOCKWASHER 2
11 554560 NUT 2
12 926429 BRACKET – clip-on (roadside, dual mount, see 223G6) 1
13 926722 BRACKET – clip-on (curbside, dual mount, see 223G6) 1
14 913161 BRACKET – clip-on (roadside, single mount, see 105C8) 1
15 913162 BRACKET – clip-on (curbside, single mount, see 105C8) 1
